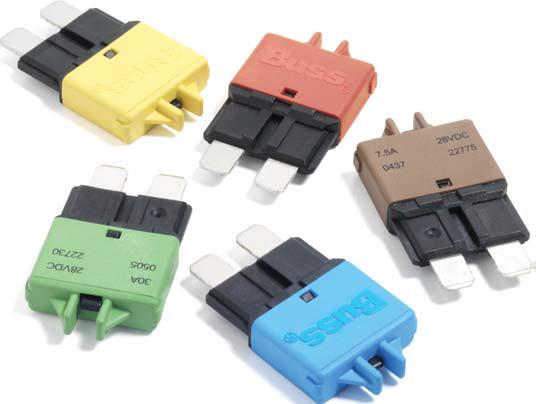

Bussmann ATC-LP Blade Style Thermal Circuit Breaker

Bussmann ATC-LP Blade Style Thermal Circuit Breaker
Data Sheets »

What is an ATC-LP Blade Style Thermal Circuit Breaker? An ATC-LP Blade Style Thermal Circuit Breaker is a low profile blade type automotive circuit breaker that is similar in style to the ATC Automotive Fuse. Typical applications can be found in automobiles, trucks, busses and other transportation vehicles that operate on DC voltage. The ATC-LP Thermal Circuit Breakers have Type III Manual Reset mechanisms. ATC-LP circuit breakers have ampere ratings from 5 to 30 amps. The ATC Low Profile circuit breaker is at 28 VDC with an interrupting rating of 2,000 amps. ATC-LP Blade Style Thermal Circuit Breakers can be mounted into ATC type fuse blocks and are SAE J553 or SAE J1171 (Ignition Protected) compliant.

Bussmann offers the ATC-LP Blade Style Thermal Circuit Breakers.
